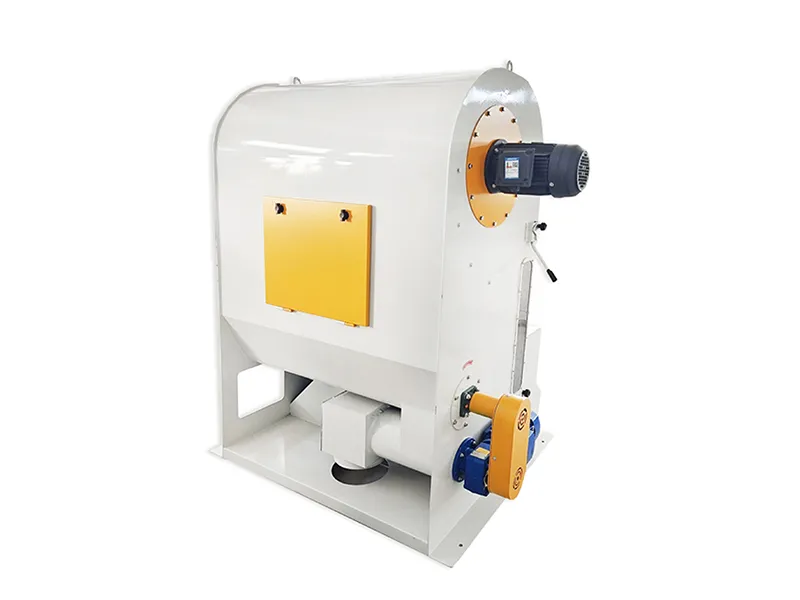

TFXH Cycling Air Separator

The TFXH circulating air separator is especially designed for the separation of low-density particles (hull, dust, etc.) from grains such as wheat, barley, maize, oil seed and others.

Pregunte ahora

Next Product

Detalle

• The TFXH circulating air separator is especially designed for the separation of low-density particles (hull, dust, etc.) from grains such as wheat, barley, maize, oil seed and others. It is commonly seen in grain depots, flour mills, rice mills, grain distilleries, oil factories, maize processing plants, feed manufacturing factories, etc. Moreover, this machine can be applied both as a stand-alone machine and in combination with vibratory separator, rotary separator or wheat scourer.

• The feature of this machine is that the air recycles inside. Compared with regular de-stoners, it can save cyclone dust filter, blower, impulse dust filter, air pipeline, etc. It takes up less floor area and saves energy.

• Our circulating air separator makes use of a large dust settling chamber to significantly enhance the separation result.

• This equipment possesses outstanding tightness, and the connection parts are handled by sealing strip. As a result, dust separated from the grains won't spread into the surrounding environment.

Model	Capacity(t/h)		Power(kw)	Weight(kg)	Dimension (LXWXH mm)
Model	Cleaning	Pre-cleaning	Power(kw)	Weight(kg)	Dimension (LXWXH mm)
TFXH 60	9	40	2.25	400	1166X1000X1680
TFXH 80	12	50	2.6	430	1366X1000X1680
TFXH 100	16	65	2.6	460	1566X1000X1680
TFXH 125	20	83	4.1	500	2216X1000X1680
TFXH 150	24	100	4.1	660	2446X1000X1680
TFXH 180	28	105	4.1	780	2766X1000X1680
TFXH 200	32	130	8.2	890	2966X1000X1680
TFXH 250	40	160	8.2	960	3466X1000X1680
TFXH 300	60	200	10.2	1260	3966X1000X1680
